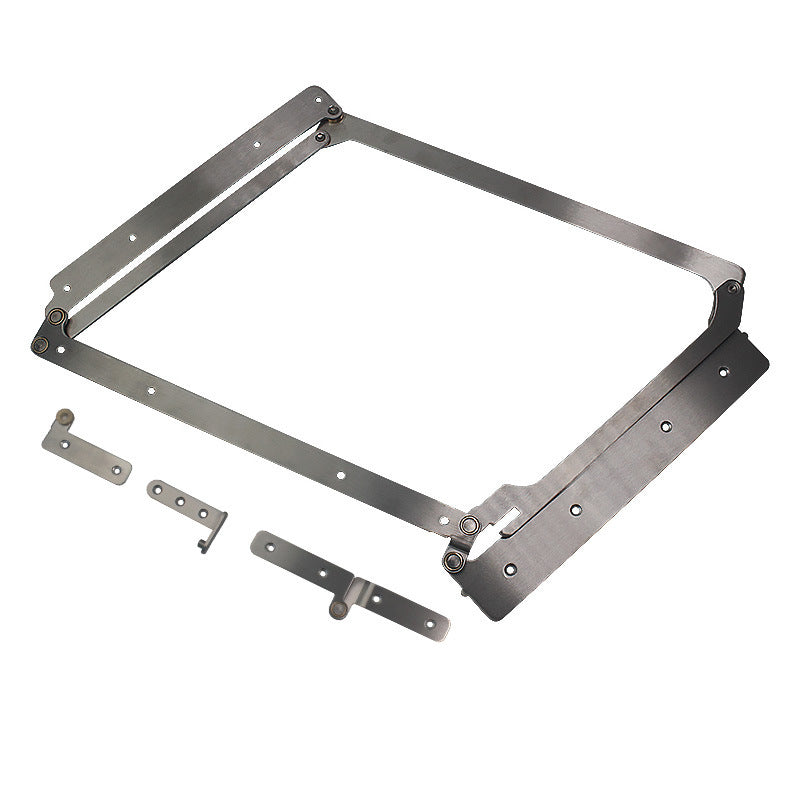

Folding Door Linkage Kit, Top or Internal Mount, XR-ZDM180

The XR-ZDM180 family separates the mounting arrangement from the opening hand. Choose a top-mounted or internally mounted linkage, then select left or right opening within that version.

Specifications and contents

Match the mounting version to the panel

At 25 mm, thickness alone does not choose the mounting version

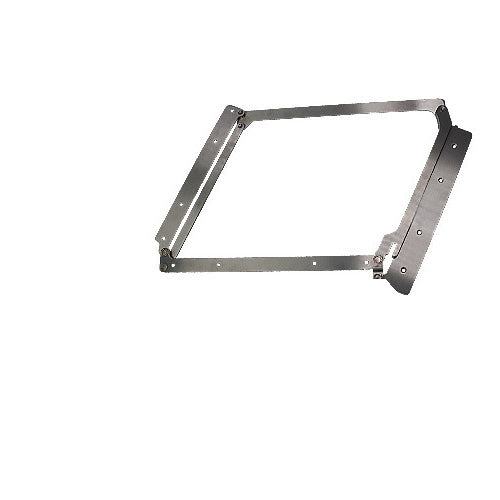

The two listed thickness ranges meet at 25 mm, so a 25 mm panel still needs a mounting-style decision. Identify where the linkage and its fittings will sit in the cabinet construction before choosing the opening hand. The motion views show the linkage open and closed; the handed reference images identify the four selections.

Before ordering

• Measure the panel thickness at the actual fixing location.
• Identify whether the design calls for top or internal mounting and record the available fixing faces.
• Check the opening direction and the arm path against the cabinet edges and neighboring panels.

What is included

One linkage assembly with mounting fittings for the selected version is supplied. Cabinet panels and furniture bodies are not included.

Compare the hardware arrangement

• View the outward-folding 38–42 mm kit — A different outward-opening specification rather than another XR-ZDM180 option.
• Compare the 800 mm door linkage — A separate family listed for 36–40 mm panels.
• Compare the 90°/180° grade-and-hand options — Another configuration family with different selection criteria.
