Folding Door Linkage Hinge for 800 mm Doors

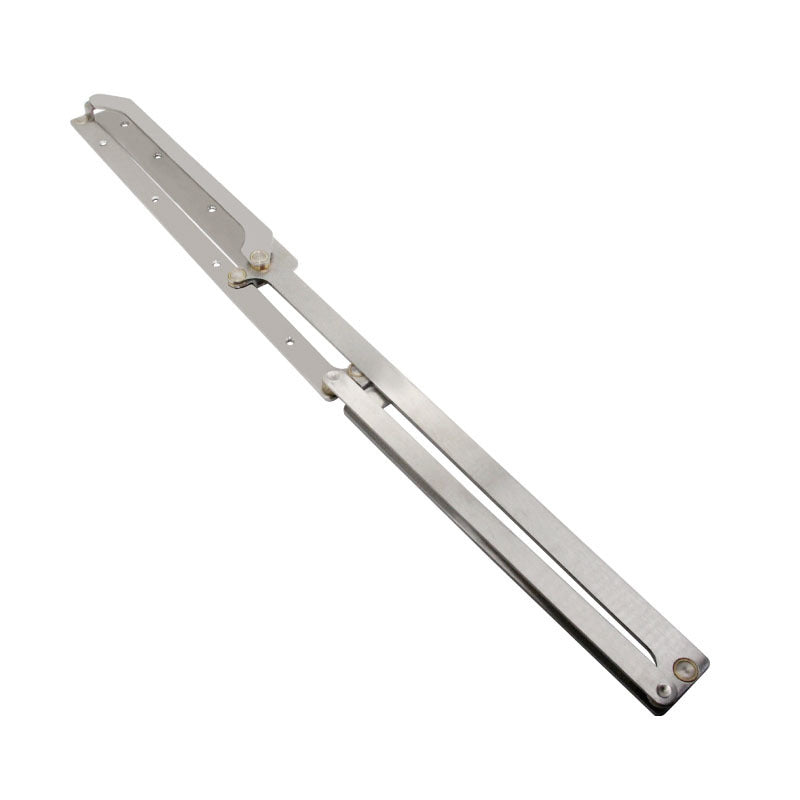

This articulated linkage connects the moving sections of a folding wooden door. It is offered for the 800 mm door option with a choice of left or right opening, so the opening direction can be selected without changing the listed door-size configuration.

Specifications and contents

Choose the door configuration before the opening hand

The 800 mm selection describes the door configuration, not the measured length of an individual arm. Establish the folding direction from the intended installed position, then select the corresponding left- or right-opening option. The long arms and pivot plates need space to move as the panels fold; the frame must accommodate that movement as well as the fixing plates.

Before ordering

• Measure the door configuration and panel thickness before choosing this 800 mm option.
• Record the intended mounting faces and the direction in which the panels will fold.
• Check clearance between the moving linkage, frame and adjacent trim through the planned movement.

What is included

One linkage assembly with mounting fittings is supplied. Door panels, the wooden frame and room furnishings are not included.
