Outward-Folding Door Linkage Kit for 38–42 mm Panels

This articulated folding-door linkage is offered for 38–42 mm panels in left- or right-outward-opening versions. Here, outward opening describes the direction of movement; it is not an exterior-door weather rating.

Specifications and contents

Choose the opening hand within the specified thickness range

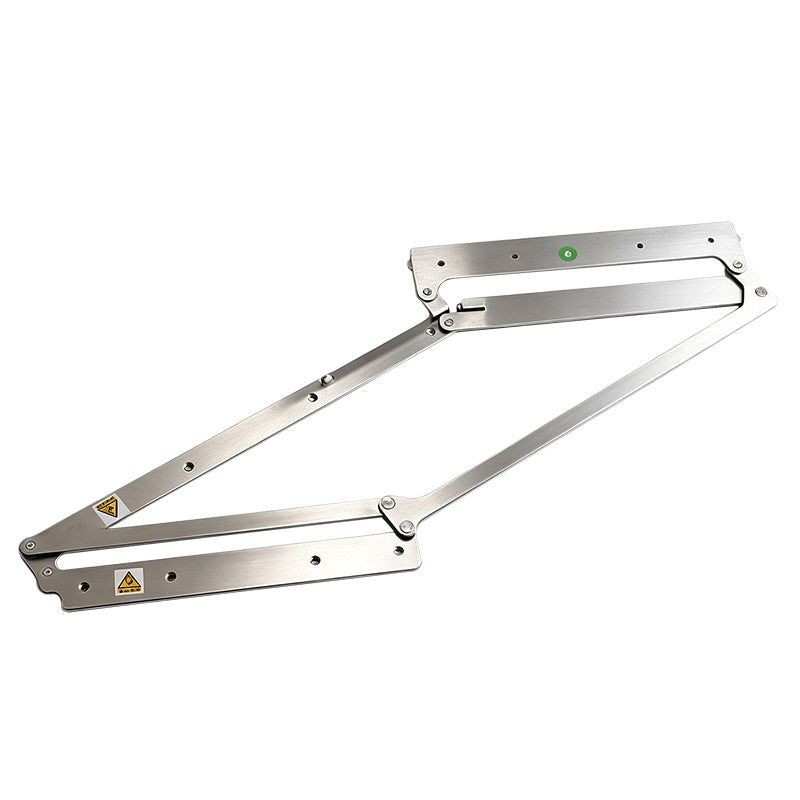

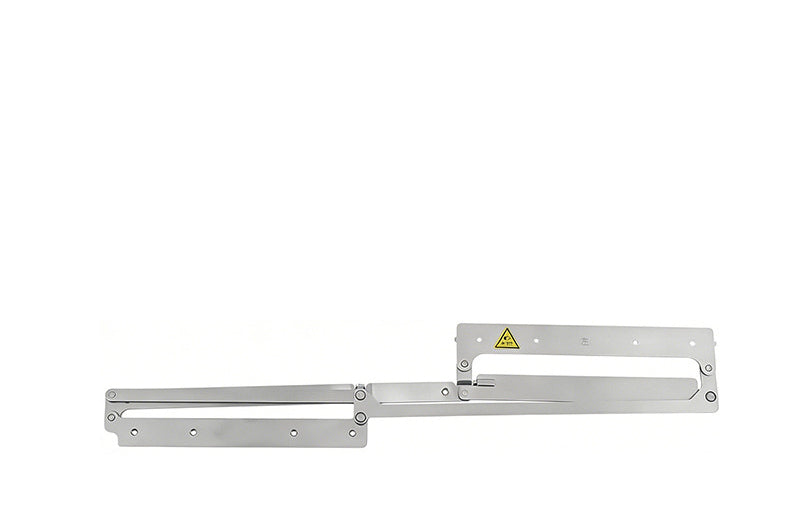

Select the outward-opening hand from the intended installed position. The open linkage, closed handed references and component layout show different aspects of the assembly. When planning the fixing points, allow for the arms to move between their open and closed positions and distinguish the supplied mounting parts from the wooden demonstration panels.

Before ordering

• Measure the panel thickness where the fittings will attach.
• Record the required outward-opening direction before selecting left or right.
• Check the fixing surfaces and clearance around the full linkage path.

What is included

One linkage assembly with mounting plates and fastener components is supplied. Fastener quantities are not specified. The wooden panels and frame are not included.

Compare the hardware arrangement

• Compare top-mount and internal-mount folding kits — Different mounting arrangements with their own panel-thickness ranges.
• View the 700–900 mm linkage options — Another family selected by door configuration, grade and hand.
• Compare the separate 800 mm door hinge assembly — A fixed-size option listed for 36–40 mm panels.
