Folding Door Linkage Hardware, 90° or 180° Options

This folding-door hardware family combines an articulated linkage with mounting fittings. Eight options let you select the opening configuration, opening hand and stainless-steel grade as separate decisions.

Specifications and contents

Build the option from three choices

Select all three parts of the configuration

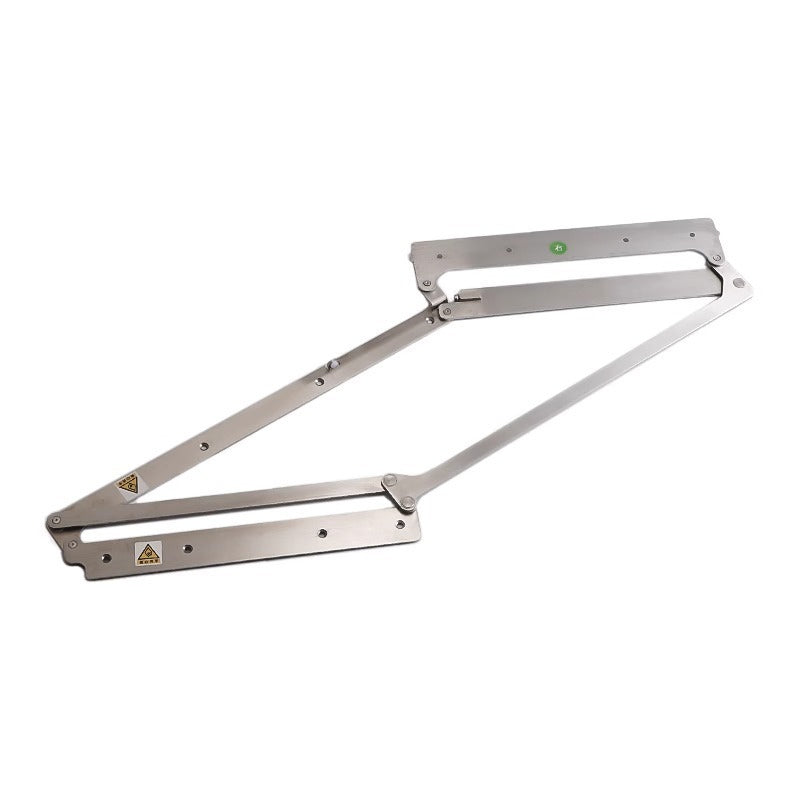

A left-opening 90° option and a left-opening 180° option have different configuration labels even when the finish appears similar. Select the opening arrangement first, then the hand and grade. The opened linkage, folded hardware and separate fitting views identify the parts; the installed examples illustrate the corresponding upper-hardware arrangements.

Before ordering

• Establish the intended panel fold and identify the opening direction from the installed position.
• Record the door and frame fixing faces and check the moving arm path.
• Choose the specified steel grade without treating it as a substitute for confirming the mounting layout.

What is included

One linkage assembly with mounting fittings for the selected configuration is supplied. Wooden door panels, frames and furniture bodies are not included.

Compare the hardware arrangement

• Compare the 700–900 mm linkage family — An alternative way to select hardware by its listed door-size configuration.
• Compare top-mount and internal-mount hardware — A family whose mounting choices carry specific panel-thickness ranges.
• View the outward-folding 38–42 mm kit — For a separately specified outward-opening arrangement.
