Folding Door Linkage Kit, 700, 800 or 900 mm

Choose this linkage family by its door-size configuration, opening hand and steel grade. The kit combines one folding linkage with three mounting fittings, with twelve combinations across the listed 700, 800 and 900 mm options.

Specifications and contents

Door-size label and closed-linkage measurement

A door-size option is not the length of the closed arm

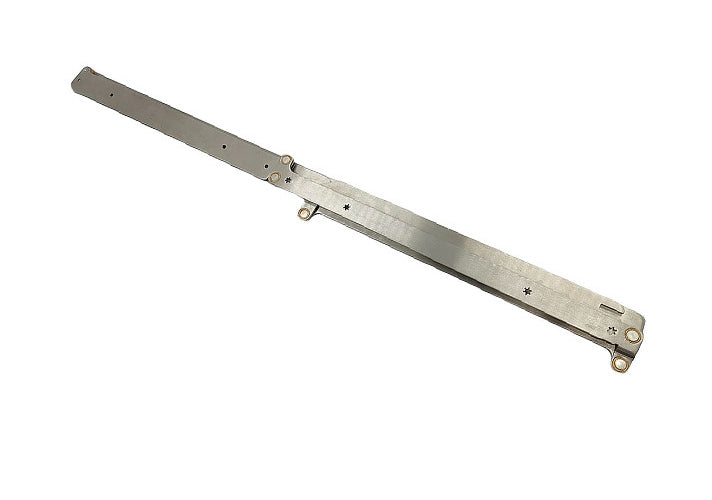

Use the door-size selection and the closed-linkage measurement for their separate purposes: one identifies the listed door configuration, while the other helps you plan room for the folded hardware. Choose the hand and steel grade within the required size. The main image shows the 700 configuration; the other images show the shared mounting fittings, including their protective packing context.

Before ordering

• Record the door configuration needed and the space available for the closed linkage.
• Identify the opening direction from the installed position before selecting left or right.
• Confirm the fixing layout for the chosen size rather than scaling measurements from the 700 photograph.

What is included

One linkage assembly and three mounting fittings for the chosen configuration are supplied. Packing context does not add a separate storage case, door or furniture frame to the order.
