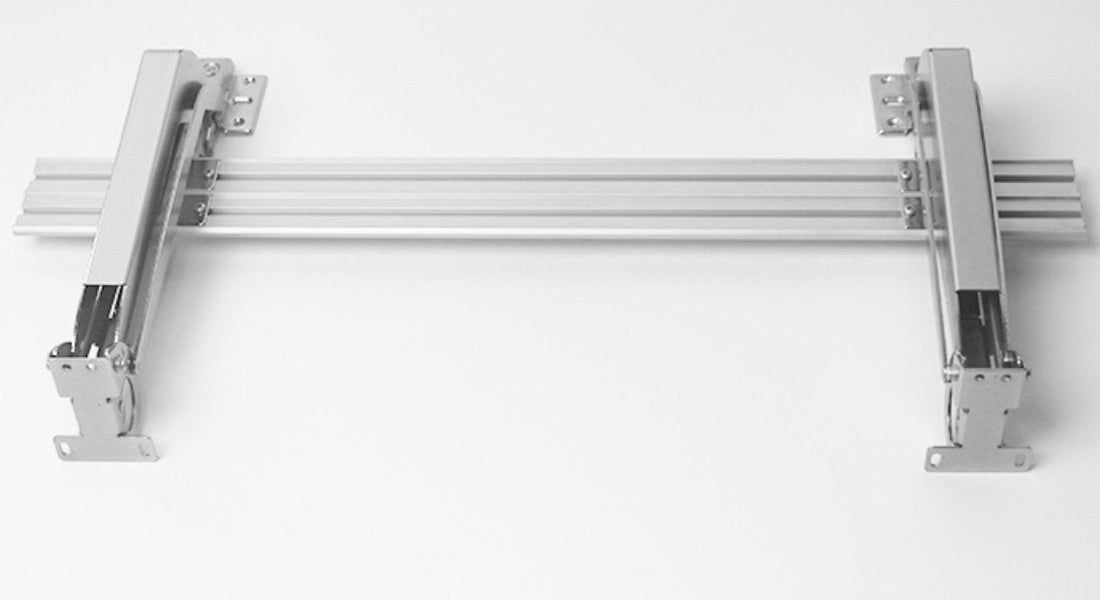

Images show the product and included items. Check the description for the selected set.
Lateral-Opening Cabinet Hinges, Kits and Rods, 045
Item No. DXM-184527809335968273-001
Available to order
Delivery questionsConfirm your destination
SHIP TO YOUR ADDRESS
Ask about delivery options for the selected product and destination.
Delivery questions →Secure checkout
Shipping and applicable taxes are calculated at checkout.
PRODUCT DESCRIPTION
The 045 family offers lateral-opening cabinet hinges as multi-hinge kits, a single hinge or rod-only lengths. The main buying decision is the hardware included in the selected option: a rod-only choice does not contain hinges, and the single hinge does not contain a connecting rod.
Specifications and contents
| Specification | Detail |
|---|---|
| Model | 045 |
| Kit choices | Two, four or six hinges with connecting rod and mounting components |
| Single component | One hinge without a rod |
| Rod-only lengths | 1 m, 2 m or 3 m |
| Application | Lateral-opening cabinet-door hardware |
Choose the complete contents of the option
| Selection | Hinges | Rod | Door-height option |
|---|---|---|---|
| Two-hinge kit | 2 | 580 mm, included | 0.4–0.9 m |
| Four-hinge kit | 4 | 180–230 cm, included | 1.8–2.3 m |
| Six-hinge kit | 6 | 240–300 cm, included | 2.4–3 m |
| Single hinge | 1 | Not included | Component only |
| Rod only, 1 m | None | One 1 m rod | Component only |
| Rod only, 2 m | None | One 2 m rod | Component only |
| Rod only, 3 m | None | One 3 m rod | Component only |
Separate door-height selection from rod length
The door-height range identifies a kit choice; it is not the same measurement as the rod supplied with that kit. The two-hinge kit, for example, lists a 580 mm rod. Establish the cabinet's door arrangement, fixing layout and required rod length together. For component-only orders, identify the actual hinge body or rod profile being matched before selecting the part.
Before ordering
- Record the cabinet door's intended height and the fixing positions for the chosen hinge-count arrangement.
- Measure the required connecting-rod length separately from door height.
- Check the rod channel profile and hinge attachment details before combining existing and new components.
What is included
Kit options contain the hinge count, connecting rod and mounting components listed in the table. The single-hinge option contains no rod. Rod-only options contain no hinges or mounting components. The rod detail shows its channel cross-section, not the full supplied length. Cabinet doors and furniture bodies are not included.
Compare the hardware arrangement
- Compare the hinge-pair and one-metre-rod offering — Another lateral-hardware family whose pair option excludes a rod; compare the actual profiles and fixing layouts.
- Compare folding-door linkage hardware — For a folding-panel arrangement rather than this lateral-opening hinge family.
